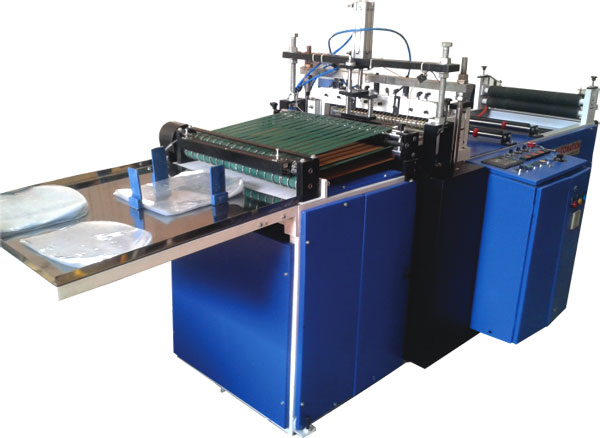

Automatic Cut & Seal For U Shape PVC Pouch |
|
|
 |
|
| HVS-1 |
|
PVC Shrink 'U' Shape Automatic Sealing & Cutting Machine |
Technical Data |
|
Sleeve Width |
60 mm to 250 mm / 100 mm to 380 mm / 120mm to 500 / 200 to 600 (11model) |
Sleeve Length |
120 mm to 1500 mm / 175 mm to 700 mm |
Film Thickness |
22 Mic. To 45 Mic. |
Out Put |
60,000 / 1,20,000 / 3,00,000 / 5,00,000 Pcs. / Day. DEP. On Mic. & Length |
Control Panel |
PLC Base with Digital Screen |
Drive |
Servo Drive |
Bearing |
"SKF" |
Die |
Suitable Material with Heater |
Sealing |
Pneumatic Systems |
Un winder Shaft |
Suitable Material with Movement Systems |
M/C Cover |
All Cover Powder Coated |
M/C Dimension |
L3500mm – H1200mm – W1100mm |
Static |
Three Strip |
Material Feeding |
Dancing Systems with Two / Four Sensor |
|
| |
|
|
|
| |
|
|
