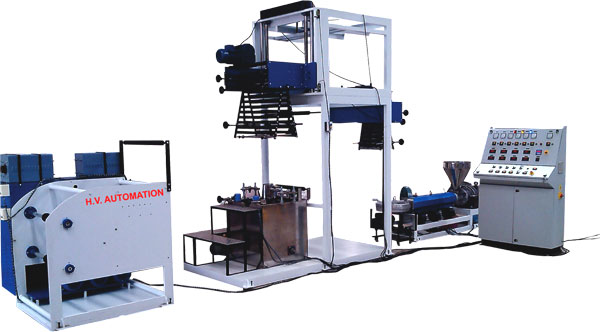

PVC Shrink Film Plant


  HVE(55 mm)

PVC Shrink Film Plant

      HVE(55 mm)       HVE(55 mm)

PVC Shrink Film Plant PVC Shrink Film Plant

Technical Data

PVC Shrink
Film Plant
HVE 38 MM
(Hot Water)

PVC Shrink
Film Plant
HVE 45 MM
(Hot Water)

PVC Shrink
Film Plant
HVE 55 MM
(Hot Water)

PVC Shrink
Film Plant
HVE 65 MM
(Hot Water)
   Suitable Material    R-PVC    R-PVC    R-PVC    R-PVC

   Film Thickness

    25 to 45 Mic.    25 to 45 Mic.    25 to 45 Mic.    25 to 45 Mic.
   Film Width    60 to 250 mm    120 to 330 mm   160 to 500 mm    250 to 700 mm
   Out – Put    15 Kg./Hrs.    25 Kg./Hrs.    35 Kg./Hrs.    45 Kg./Hrs.
   Screw Diameter    38 mm    45 mm    55 mm    65 mm
   L/D Ratio    26.1    26.1    28.1    28.1
   Drive    ACV    ACV    ACV    ACV
   Main Motor    10 HP    15 HP    20 HP    25 HP

   Main Gear Box

    HELICAL    HELICAL    HELICAL    HELICAL

   Cooling Blower

    0.5 HP    1 HP    1 HP    1.5 HP
   Take-Up Roll    350 mm    550 mm    650 mm    850 mm
   Winder Unit    AC TORQUE    AC TORQUE    AC TORQUE    AC TORQUE
   Connected Load    28 HP    35 HP    45 HP    52 HP

   Bearing

   SKF

   SKF

   SKF

   SKF
   Up-Down    3rd NIP    3rd NIP    3rd NIP    3rd NIP
